The analysis result

Once the Symptoms and Rubrics have been added to the Analysis, it is time to look at the results.
These results are shown on the right hand side of the window.

There are basically two ways of viewing the analysis result:
- an overview of multiple results, based upon the same analysis.
- a detailed overview of a single analysis result.

Alternatively, an analysis can be made for Kingdoms & Families instead of individual remedies.

Viewing multiple analysis results

The overview of multiple results can be selected. (Menu option Analysis / Simple list, toolbar button ).

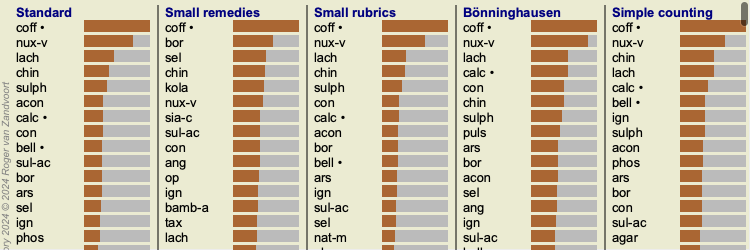

It will look like this:

The standard analysis methods

The standard results in this picture mean the following:

StandardThis is the standard analysis result, based upon carefully selected parameters.
Small remediesIs this result, smaller remedies are given more importance than larger remedies (polychrests). This compensates for the unequal occurrence of remedies throughout the repertory. Polychrests are not left out of the analysis, it is just that their dominance is reduced.
Small rubricsIn this result, the rubrics with few remedies are given more importance than rubrics with a lot of remedies. This way, more characteric rubrics have more impact on the result than very common rubrics.
BönninghausenIn this type of analysis, a remedy is counted based upon its occurrence in related rubrics in the repertory.
Bönninghausen analysis is used mainly with the larger and more generic rubrics. Also, correction for polar rubrics is more important. For more information, see Analysis - Bönninghausen.
Simple countingThis is a very simple counting, like it was done in the old days with just a pencil and paper. For all rubrics in the analysis, the gradation of all remedies is simply added up.

Selecting which analysis methods are used

Maybe you are not always interested in all the standard analysis methods that Complete Dynamics offers you.
You can decide which analyses are shown and in which order they should occur.
You can change this in the Preferences settings. See section Preferences for more information.

Analysis results details

When you look at the result in the picture above, you will notice that no numbers are printed whatsoever. All you see is a bar behind every remedy, that shows the relative importance of the remedy. The remedies are sorted in order of importance. The shorter the colored bar, the less important the remedy is in the given result.

If you move your mouse over the remedy name, more detailed information is shown in the window's message area at the bottom.
If the mouse is moved over chin for example, the message area shows:

This means that this is entry number 4, chin stands for remedy China officinalis, it has a relative importance of 45% compared to the highest remedy (coff), and that the remedy occured in 8 of the counted rubrics in 3 symptoms.
Note that for analysis result 'Simple Counting', the relative score is the sum of grades for the given remedy. In all other analysis results, the highest remedy is given the relative value 100 and all other values are relative to this highest value.

If you prefer to see numbers in the result, you can press the toolbar button. (Menu option Analysis / Show numbers, toolbar button ).

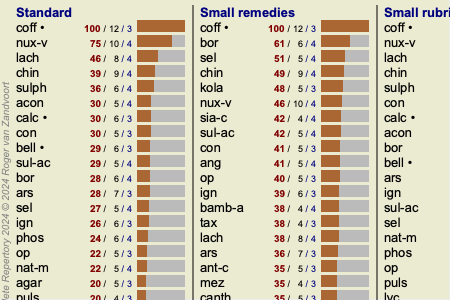

The result will then look like this:

In some situations, you might not want to sort the result in order of importance, but according to the number of symptoms and rubrics a remedy occurs in.
You can then press toolbar button , meaning 'Sort analysis on number of symptoms/rubrics'. (Menu option Analysis / Sort on count, toolbar button ).

Remedies already prescribed

It can often be convenient to quickly recognize which remedies have already been prescribed to a patient.
All remedies that have previously been prescribed, are marked with a dot behind the name.

Finding the relationship between rubrics and remedies

You can quickly see the relationship between rubrics and remedies by clicking on either a rubric, or on a remedy in the result.
The corresponding remedies or rubrics are highlighted then.

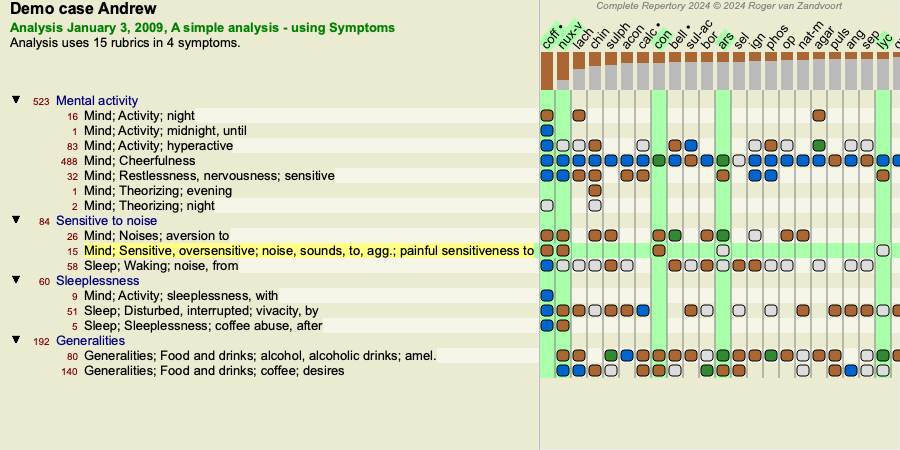

Example: Clicking on rubric Mind; sensitive, oversensitive; noise, to; painfull sensitiveness to will show the following in the result area:

In a glimpse you see which remedies are in that rubric!

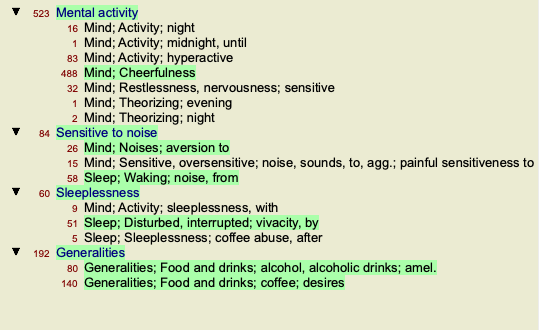

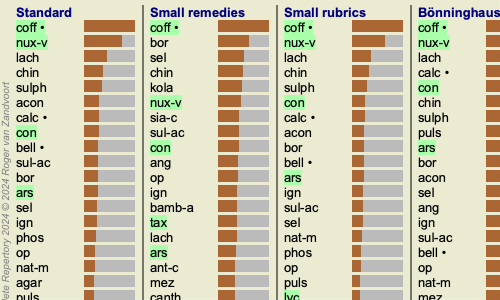

Example: Clicking on remedy sulph will show the following Symptom and Rubric overview:

And in a glimpse you see in which rubrics sulph occurs. Moreover, the selected remedy is highlighted in the other analysis results as well, so you instantly see the relative ranking in the different analyses.

So far for the overview of multiple analyses. Let's now take a look at the detailed overview of a single analysis result...

Viewing a detailed overview of a single analyis result

A more detailed overview of a single analysis can be shown in either the Table or in the Grid view, according to your preference. (Menu option Analysis / Table, toolbar button , menu option Analysis / Grid, toolbar button ).

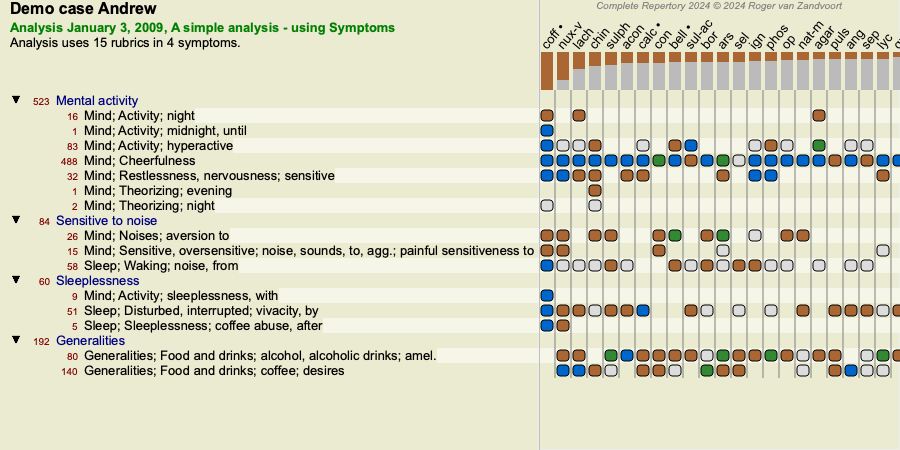

The Table view looks like this:

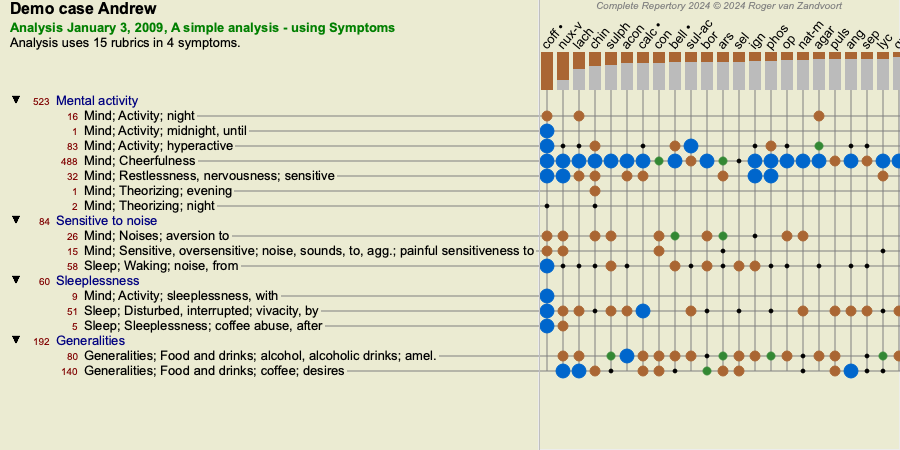

The Grid view looks like this:

This way you get to see the relationship between rubrics and remedies in a single picture. Of course this can only be done for a single analysis.
Below the raster you see a selection box, in which you can switch between the available analysis results.

The blocks or dots indicate that the remedy occurs in a rubric:

Grade 1
Grade 2
Grade 3
Grade 4

Moving your mouse over a bullet will show you detailed information about the remedy in this specific rubric, including author information. The information is again shown in the message area at the bottom. Moving the mouse over the blue bullet at the crossing of coff and Mind; cheerfulness will show the following information:

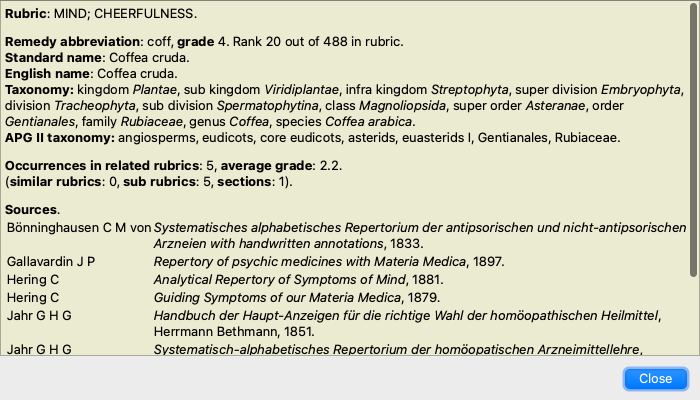

If you want more details, just double click on the bullet to get the complete remedy information:

You can move your mouse over a remedy name at the top of the result area to see more information, just like in the overview of multiple results show earlier. Also, you can highlight rubrics or remedies by clicking on them:

And of course the toolbar buttons and can be used to show numbers or change the sorting order.

Locating a remedy in the analysis results

In some situations, you do not just want to see the top results of an analysis, but want to know exactly where a given remedy occurs in those results.

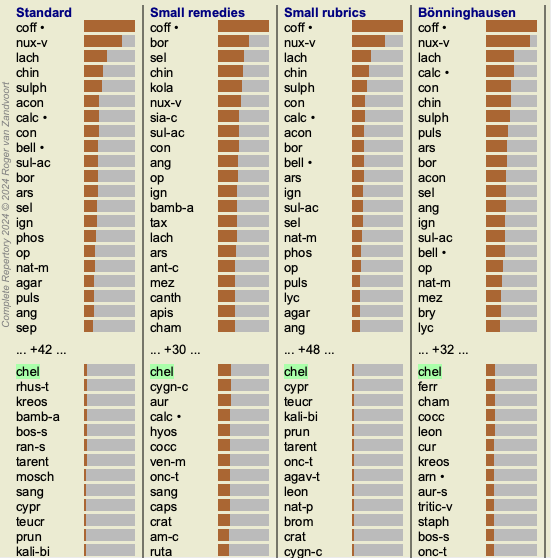

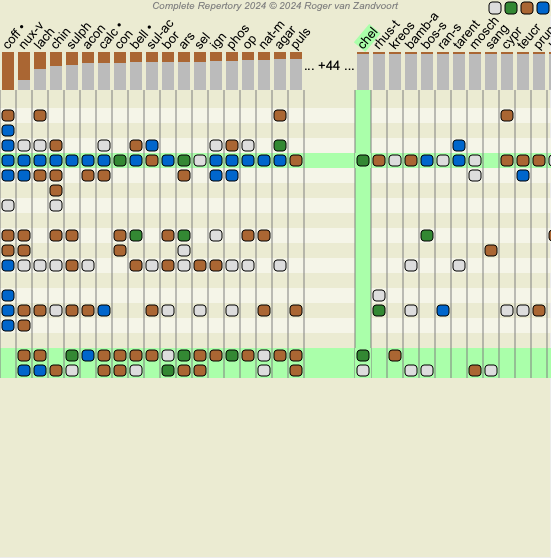

All you have to do is type the abbreviation of the remedy in the Locate remedy field below the analysis results.
The analysis redraws if necessary, skipping part of the results to ensure that your remedy is shown.
The remedy you are looking for is automatically highlighted, to make it better visible for you.

Instead of typing the remedy in the Locate remedy field, you can also click on the result graph and simply type there.
If, in this situation, you press the Escape key, the selection is cleared.

Analysis of Kingdoms & Families

An analysis view for Kingdoms & Families can be selected. (Menu option Analysis / Kingdoms & Families, toolbar button ).

The following example shows a case in which Stramonium was the selected remedy.

In the family analysis, the more relevant families are drawn larger than the less relevant families. The families that appear to be of very low relevance, are not drawn at all.

Comparing families

In the example, you see that the most relevant families are the Solanaceae and the Loganiaceae. The Solanaceae are evident, since Stramonium is a member of the Solanaceae. But you would probably like to know why the Loganiaceae are considered relevant too.
Double click on Solanaceae and on Loganiaceae. Extra information is now shown, in the form of multiple analysis results for each family. The first analysis list is a generic analysis for all remedies.

Whenever you double click on a family in the graph, it is placed at the left side of the added families. So if you were now to click again on Solanaceae, it would be placed between Standard and Loganiaceae.
You can show or hide this extra information any time you want. (Toolbar button ).

Showing the relationship between families and remedies.

When studying the relevance of families in an analysis, you need to be able to see the relationships between families and remedies.

Just click on a family in the graph to see how its remedies score in the analysis. You will notice that the corresponding families are also highlighted in the family graph. This allows you to quickly see how families are related.

If you click on a remedy name, that remedy will be highlighted in the different analyses. Also, all families which contain that remedy are highlighted in the graph.

Filtering the analysis results

Filtering the results on remedy family

Normally, the analysis results show all remedies.
You can restrict the results to only those remedies that are part of a given Kingdom, Family, or some other group.
To do this, simply make a selection from the dropdown list in the toolbar:

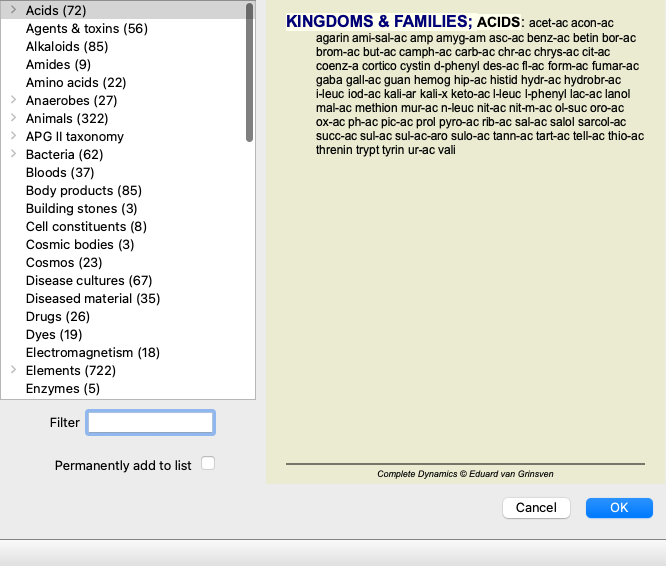

A number of frequently used groups are predefined (minerals, plants, animals, nosodes). To choose another group, simply select option Other... and a dialog will appear in which you can select one of the groups in the Kingdoms & Families section.

If you check the option Permanently add to list, the group you selected will be added permanently to the standard groups in the list. Next time you start the program, that group will still be in the list. If later you want to remove it, select the same group again via the Other... option, and deselect the option.

Analysis module rubric based filter

The Analysis module offers a powerful filtering mechanism, based on the remedies in rubrics.
With this filter, it is easy to limit the remedies in the analysis to remedies that occur in a given rubric ("elimination"), or combination of rubrics.

The filter is configured using a number of options in the menu bar (Menu / Analysis / Filter), or the popup menu.
The available options are:

You generally start by setting the filter to a given rubric, because you expect your remedy should occur in that rubric. You then fine-tune the filter with restrict ("should be present here too, show me less"), or extend ("actually it's ok if it is here too, show me more") the filter.

Filtering on families

Filtering in the Families Analysis graph

In the family analysis graph, you can quickly modify the remedy filter based on families. The filtering options are found in the popup menu on a family. The options are the same as described above for the Rubric based filter.
Using these filter options changes the remedy filter in the other analysis results. The family analysis graph itself is never filtered, because it does not consist of remedies but of families.

Filtering in the other Analysis views

You can easily filter the analysis results on any family that any remedy is part of. The family filter is available in the popup menu of a remedy.

Layout wizard

With the analysis Layout Wizard, you can apply some of your preferences to the analysis result, with just the press of a single button. (Menu option Analysis / Layout Wizard, F2, toolbar button ).

You can easily configure these preferences. (Menu option Analysis / Layout Wizard configuration, shift-F2).
